16 Channel Output For Line Follower Robots
Quality & Support
Logistics & Delivery
Sold Out
This high-performance unit is currently out of stock. Check back soon!

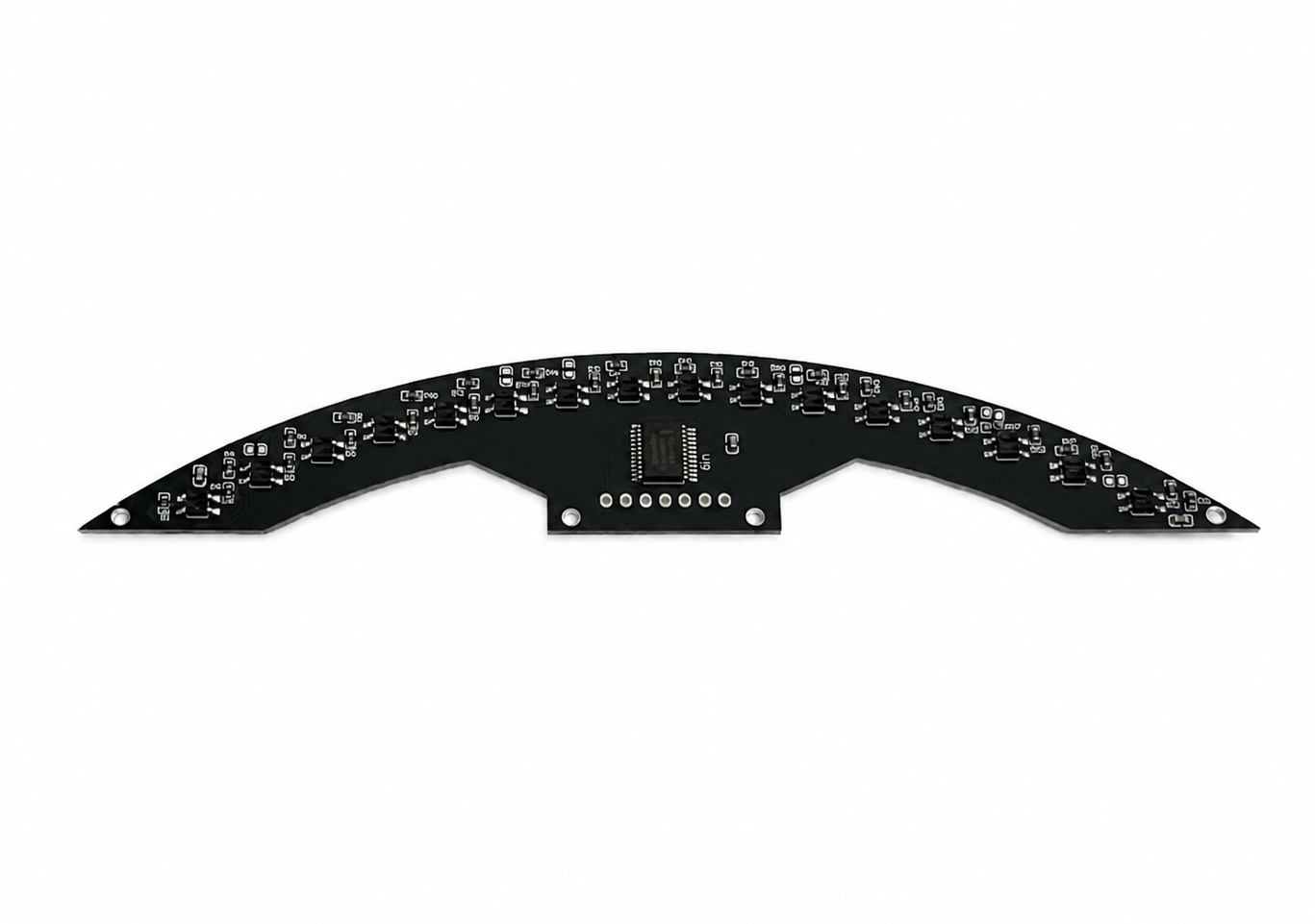

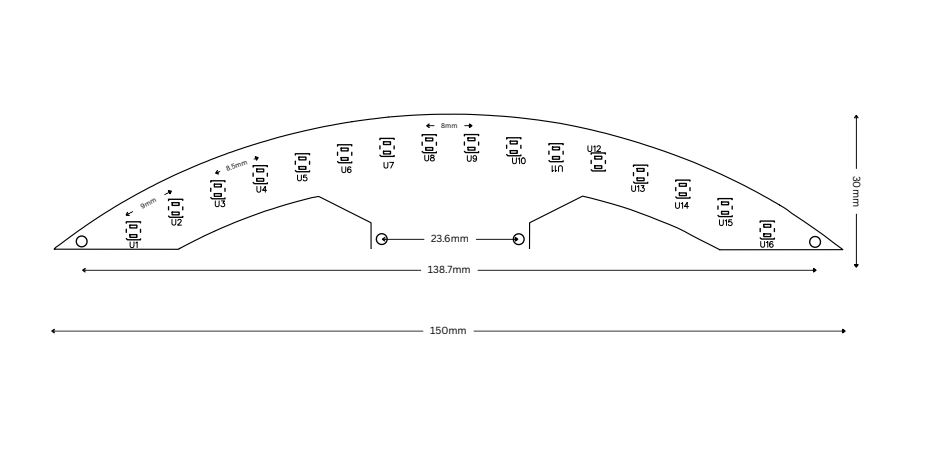

16-Channel Curved QRE1113GR Sensor Array Engineered for competitive line follower robots, this premium 16-channel sensor array features original onsemi QRE1113GR reflective infrared sensors arranged in a curved geometry to provide superior line tracking performance during sharp turns, high-speed cornering, and complex track layouts. The board integrates a 74HCT4067 16-channel analog multiplexer, allowing all 16 sensors to be accessed efficiently while minimizing microcontroller pin usage. The curved sensor arrangement improves line acquisition and enables smoother PID control, making it ideal for advanced and high-speed robotics applications. | Dyoraa Robotics.
- Sensors: 16way IR
- Voltage: 5V
- Output: Analog
- Detection: 0-5mm (For Best Outputs)
Customer Reviews
What others are saying about the 16 Channel Output For Line Follower Robots.
I have won so many events I recommend this sensory for accuracy and speed
The 16 Channel Array is good and Ir gives Perfect Readings and good for fast line follower
Very good 😊
